Hephzi Galaxy


Hephzi Galaxy

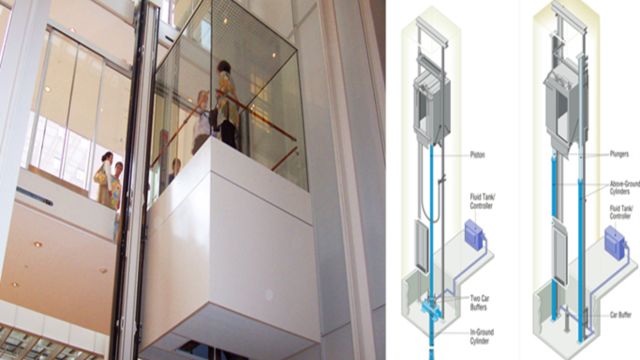

Hephzi Galaxy is a Hydraulic Lift, these lifts work on a basic principle, to go up, a pump pushes oil into the cylinder, pushing the piston (which pushes the lift car) up. To go down, the valve opens, and oil is allowed to flow back into the reservoir and is pushed back using the gravitational force of the lift car. Advantages of Hydraulic Lifts are, it occupies less space in a building, requiring almost 10% less area for the lift shaft than traction elevators, also do not require a separate machine room, overhead required is lesser, less wear & tear, discretionary placement of the drive unit. Some of the disadvantages are, low positioning accuracy, Heating of the hydraulic oil, noise emission. Hydraulic lifts are used in a variety of different applications, they can be found in automotive, shipping, construction, waste removal, mining, residential and retail industries as they' are an effective means of raising and lowering people, goods, and equipment.

  • This is a Hydraulic Lift
  • Speeds ranging from 0.2 to 0.5 MPS.
  • Up to travel height of 50 meters
  • Available for passenger, goods, and car lift
  • Payload 3 passenger (204 Kgs) to 5 Ton
